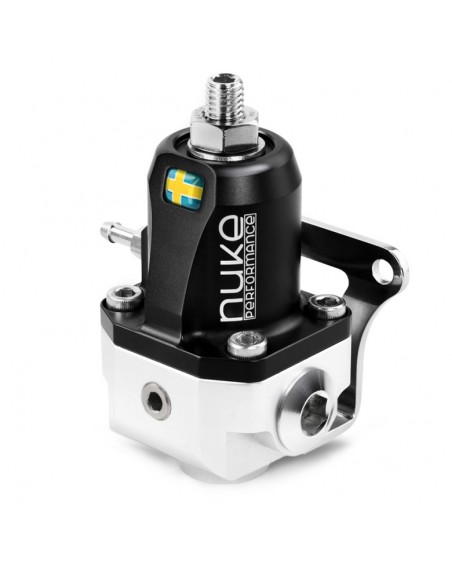

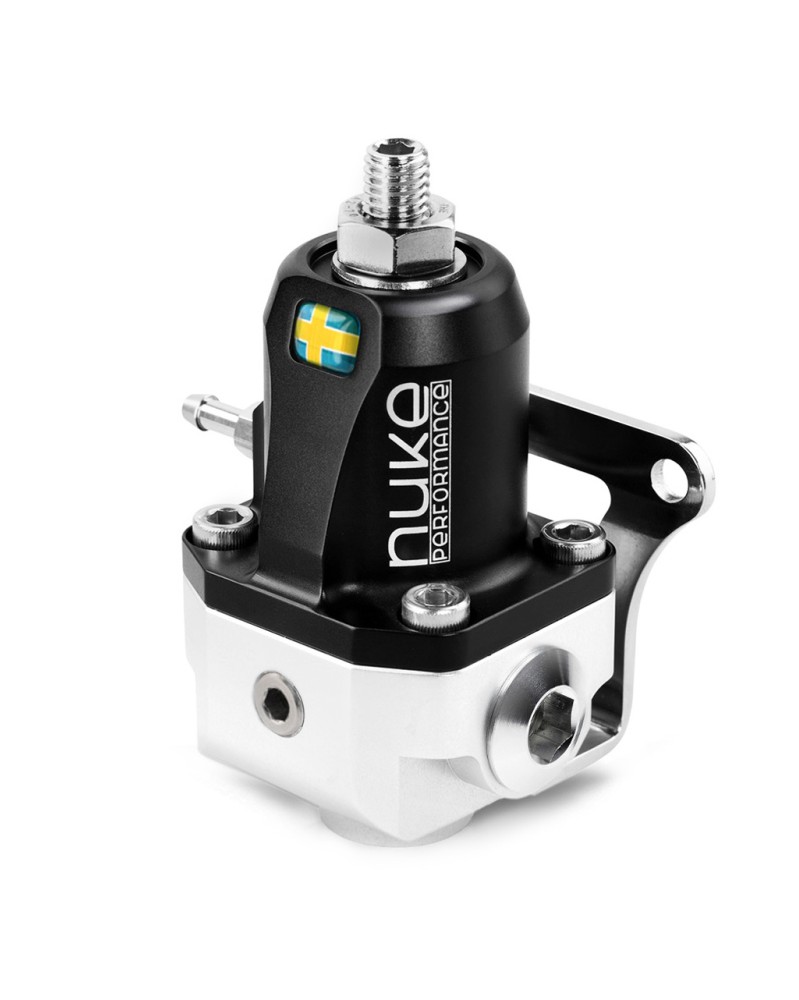

Fuel Pressure Regulator FPR100m AN-8

kr4,190.00

Tax included

Order item

Fuel Pressure Regulator FPR100m AN-8

Universal motorsports regulator
Approved for 500-1200hp
Safe for petrol, methanol, and ethanol
Every unit is performance tested
Adjustable up to 100 PSI (7 bar)
1:1 boost reference
Stainless steel mounting bracket
AN-8 ORB inlets/outlet

1:1 boost reference
1000 LPH free flow rating
AN-8 ORB inlets and outlet
Lightweight motorsports design

Specifications:

Pressure range	2 - 7 BAR (30 - 100 PSI)
Boost reference	1:1
Horsepower rating	1200 HP
Free fuel flow rating	1000 LPH
Fuel compatibility	Gasoline, Petrol, Methanol, Ethanol
Inlet thread	Dual AN-8 ORB, view range
Outlet thread	Single AN-8 ORB, view range
Gauge port	1/8 NPT
Vacuum reference port	1/16 NPT
Diaphragm	46mm Fibre-enhanced nitrile membrane
Height	98-110mm (3.85-4.33")*
Width	55mm (2.16”)
Depth	49mm (1.93”)
Weight	427g (15.06oz)
Ball-Bearing adjustment	≈0.14 BAR (≈2 PSI) / turn

Kit includes:

1 x 8AN ORB plug for the additional inlet
1 x 1/8 NPT plug for gauge/sensor outlet
1 x 1/16 NPT Barb fitting for 5mm vacuum hose
1 x Stainless steel mounting bracket
2 x Stainless steel bolts for the mounting bracket
